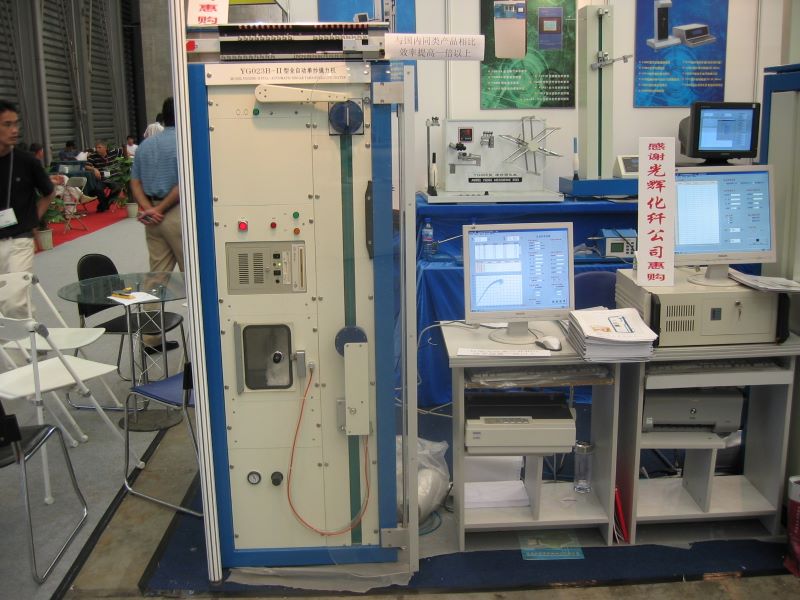

Specification for full automatic single yarn
tester machine:
1.
Load
range: 0---5000CN
2. Precision
of load: <+/- 1%.
3. Clip
distance : 100-500mm
4. Drawing
speed: 10-10000 m/min
5.
Pre-tension:
0-250cn, it is automatically calculated by computer.
6. Clip
method: pneumatic clip
. pressure : 0.4-0.8 Mpa.
7. Digital
input: by keyboard
and mouse.
8. Digital
output: tenacity ,
elongation , break tenacity, break power,
break time, min value, max. value,
average value. Etc.
this value are showed by computer and
printer.
9. Power:
220V, 50Hz. 1.2 Kw
10. Weight :
300kgs
12. Overall
dimension: 1100x630x1770 mm ( without screen
|
